The NP5-DP-2FT (NP1GEN2) is a parabolic antenna designed for point-to-point communications by directing the waves to the receiver at its focal point through a parabolic reflector. This antenna has a high gain of 30 dBi and operates at a frequency ranging from 4900 to 6400 MHz. The antenna is highly directional, which means that it receives more power in a specific direction, has an N female connector and has N - RPSMA jumpers for connectorized radios. Its main application is for Backhaul and CPE.
Netpoint's NP5-DP-2FT is a highly directional antenna that has a 6° beamwidth for more stable and reliable communication.
Netpoint's NP5-DP-2FT is a light-weight, low-profile antenna ideal for the wireless ISP operator industry.

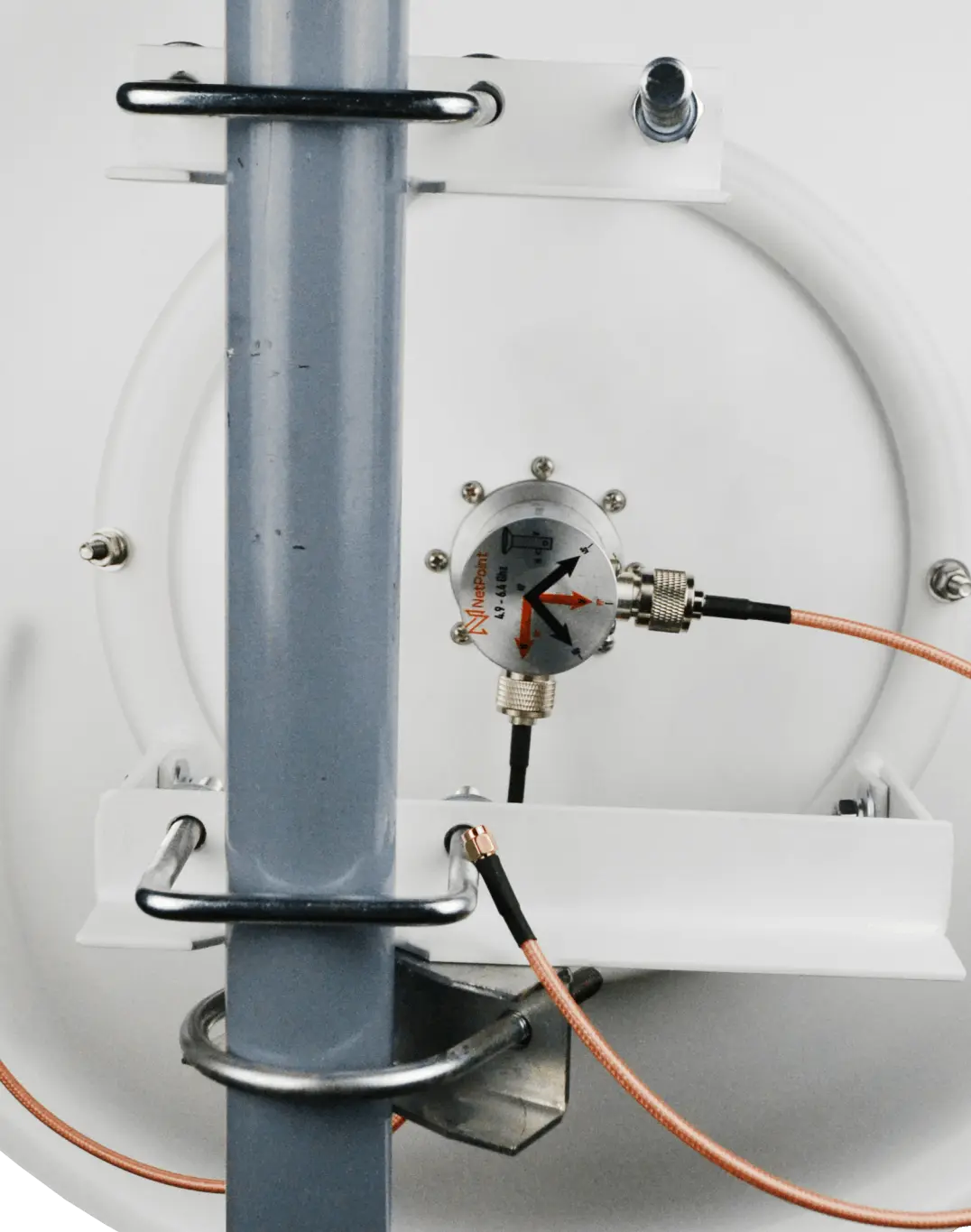

Netpoint's NP5-DP-2FT is a dual polarized V/H or ±45° slant adjustment and Includes N-Male to SMA Reverse male Jumper.
Netpoint NP5-DP-2FT is an antenna compatible with radio units: Mimosa Networks, Ubiquiti, Cambium Networks, Radwin, Telrad and others.
Backhaul - CPE

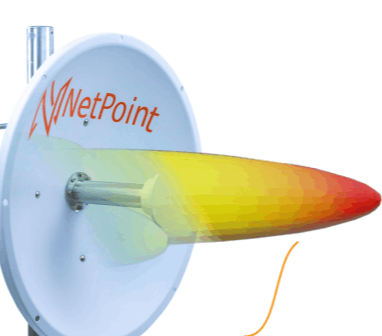

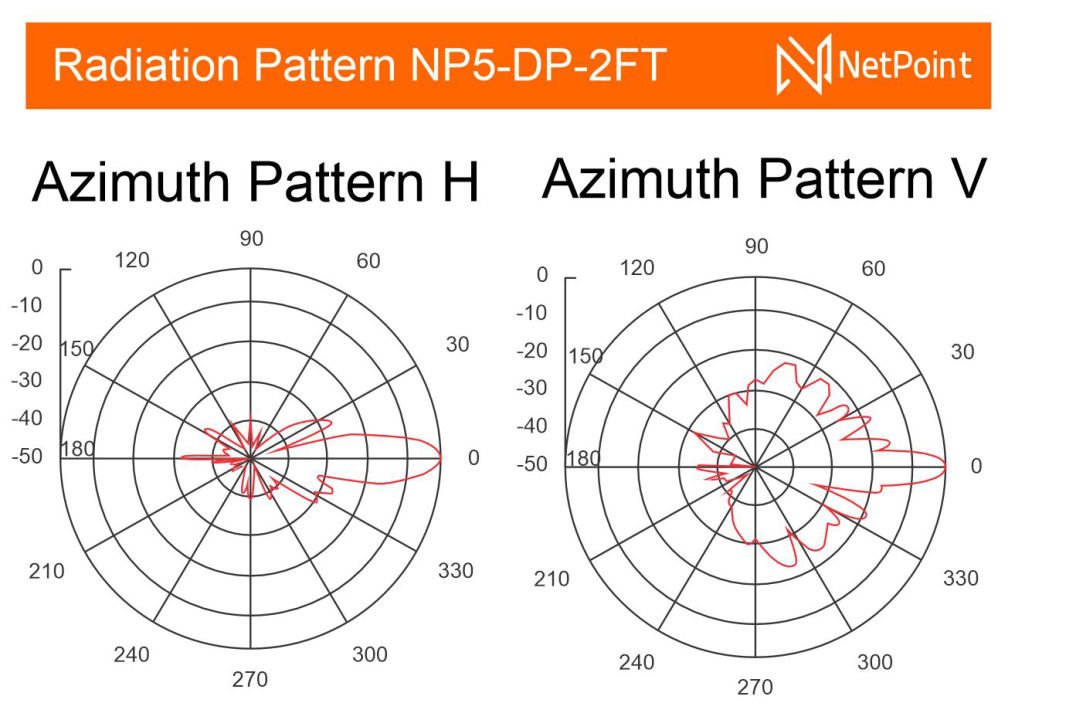

Radiation pattern optimization to hit the center lobe of NP1GEN2 antennas

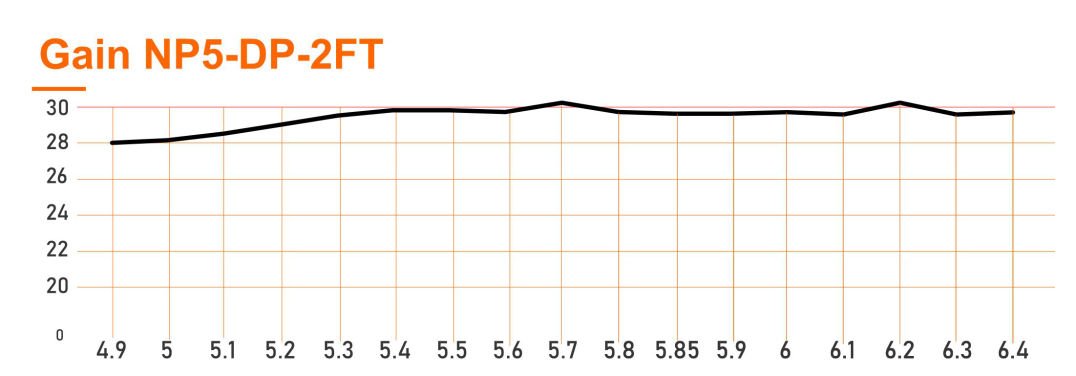

A stable gain over the entire band, NP1GEN2 antenna gain graph in dBi.
Superflex Jumper Netpoint NP142 SMA, is a 30 cm copper coaxial cable with 96% silver plated double mesh shielding, Teflon TFE insulation with SMA male 0.1 dBi loss, ideal for Ubiquiti radios, Mimosa Networks, Cambium Networks this is the cable that you will receive in your antennas. A flexible jumper ready to use up to 8 GHz.
• 50 Ohms Impedance
• Consistent V.S.W.R. performance and Low Passive Intermodulation (PIM) results in fewer dropped calls and a better performing network
