Link with compromised line of sight

High gain vs. geography obstructions

In some scenarios Integra IP clients had a very particular case where they made a complicated link caused by hills on the way to CDMX to Pachuca with a distance of 27.3 KM where they searched for more than 7 days for a place where they did not have to triangulate this link. 3 KM where they searched for more than 7 days for a place where they did not have to triangulate this link where the height and gain played with the Fresnel zone and avoid degrading the link that they had at the time with a RDG34 dish which was replaced with a pair of NP3 antennas now NPTR3 that the remote location was compromised because it was sought to generate a single investment in the link.

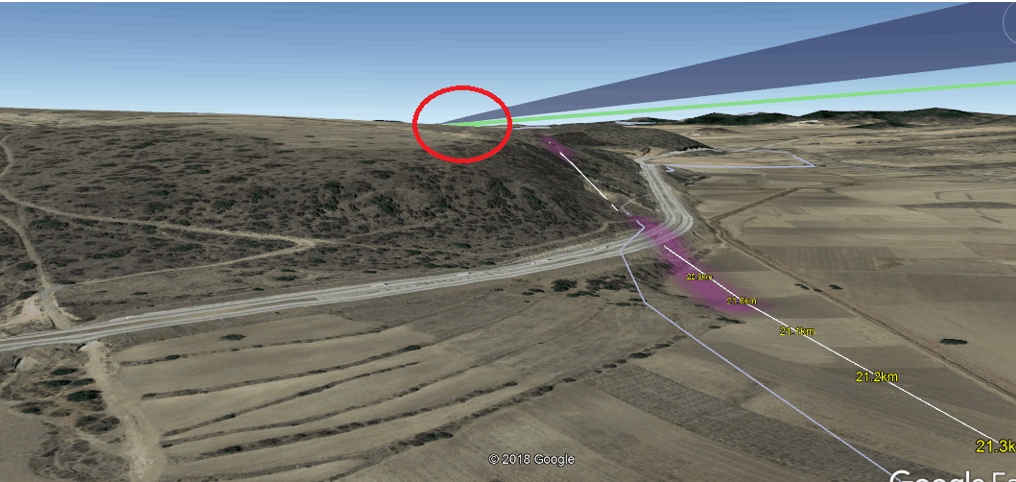

Where the gain of the NP3 antennas were the solution against the gaps as shown in the following installation with the Fresnel study where the gain of the RDG34 antennas is shown.

Difficult link as the signal has to go over 3 hills and the line of sight is very complicated, the 45° slant allowed us to solve this challenge. This is the most difficult obstacle we had to solve.

Netpoint mimosa
Caso de éxito Enlace con linea de vista comprometida | NetPoint

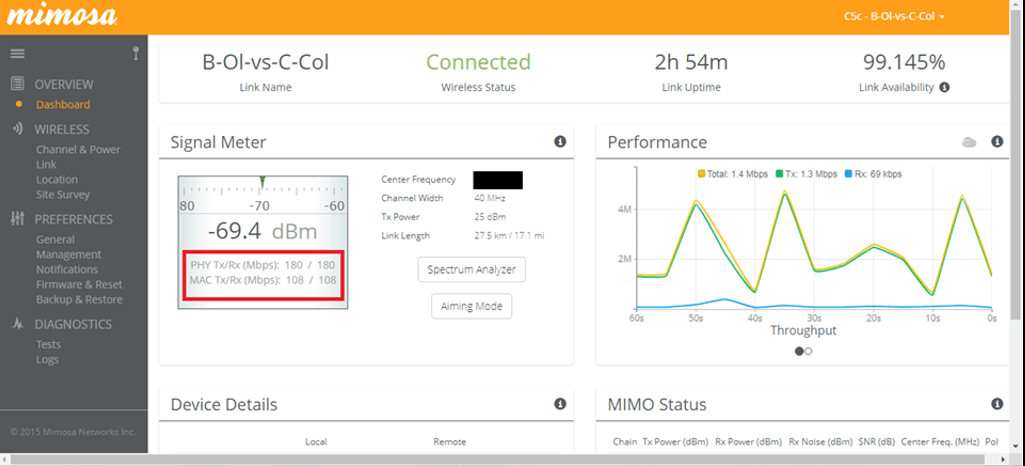

Final result of the link, Bandwidth already with NP3 Link of 27.5 Km finally could get more bandwidth here if allowed to use 80 MHz channel and there was no drop. And it shows stability in 15 days I congratulate Antenas de Jalisco for the very noticeable improvement of their products NetPoint NP2 and NP3 since we solved a problem, that we had been a long time without obtaining favourable results for this link although not very long but very complicated.
